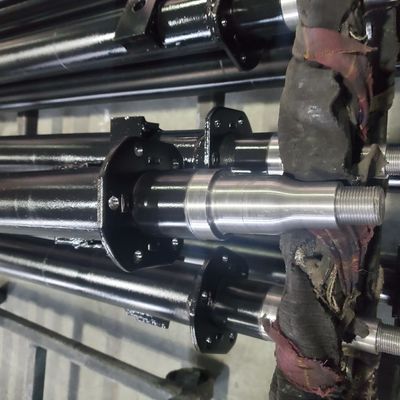

ISO TS16949 50mm Round Trailer Straight Axle 2500-3500Kg

ISO TS16949 50mm Round Trailer Straight Axle 2500-3500Kg
ISO TS16949 50mm Round Trailer Straight Axle 2500-3500Kg ISO TS16949 50mm Round Trailer Straight Axle 2500-3500Kg

Large Image :  ISO TS16949 50mm Round Trailer Straight Axle 2500-3500Kg

Product Details:
Place of Origin: Shandong,China
Brand Name: Airui
Certification: ISO/TS16949
Model Number: AC069
Payment & Shipping Terms:
Minimum Order Quantity: Deliberations
Price: Deliberations
Packaging Details: 1. Hot shrink poly per set/box and ten boxes in one carton. 2. Pallet packing. 3. As your requirements
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 20000 Set/Sets per Month

ISO TS16949 50mm Round Trailer Straight Axle 2500-3500Kg

Description
Use: Trailer Parts Max Payload: 3500 Kg
Size: 5.5 Material: Iron
Quality: 100% Guaranteed Length: Customer Model
Tube: 50 Mm Square Bolts: Unbrake Axle
High Light:

50mm Round Trailer Straight Axle

,

ISO TS16949 Trailer Straight Axle

,

50MM Trailer Axle 3500Kg

50 MM Round Solid Tube Straight Unbrake Trailer Axle 2500-3500 Kg



Options include:


What brakes are needed?

  • Mechanical disc or drum
  • Hydraulic disc or drum
  • Electric drum

Stud pattern

  • Holden HT, HQ or Commodore
  • Ford
  • Landcruiser

Axle
What is the total weight rating?

What bearings are needed?

  • Holden LM bearings
  • Ford slimline bearings
  • Landcruiser bearings – (please stipulate the bearing part numbers)



NO. Description QTY option 1 option 2
1 axle shaft 1 76mm round tube 60mm Rd / Sq solid
2 oil seal 2 AC01600201
3 inner bearing 2 L68149/11
4 ilder hub 2 AC01600300B
5 outer bearing 2 LM67048/10
6 flat washer 2 AC00201001
7 castle nut 2 AC00200701
8 split pin 2 AC00200404
9 dust cap 2 AC00300601
10 spring seat 2 AC01600601




ISO TS16949 50mm Round Trailer Straight Axle 2500-3500Kg 0ISO TS16949 50mm Round Trailer Straight Axle 2500-3500Kg 1



FAQ:


1: Could you please make us an offer as soon as possible?

In order to get the price quickly and accurately, please provide the technical drawing or OE number, we will be very grateful.



2: How can you guarantee the quality of your products?

Our products have passed ISO9001 international quality standard certification. Our company has a very strict quality control system.



3: How to solve the problems in the later stage?

We are confident in our products. We pack them well to make sure they are well protected.



Packaging & Shipping

As for the transportation of products, our company supports various sea, land and air international transportation. Please confirm the specific transportation plan during the negotiation.
