Product Details:
|
| Use: | Trailer Parts | Max Payload: | 1200-2000 Kg |
|---|---|---|---|
| Size: | 10 Inch | Material: | Steel |
| Quality: | 100% Guaranteed | Length: | Customer Model |
| Tube: | 45 Mm Round | Bolts: | 5 Bolts |

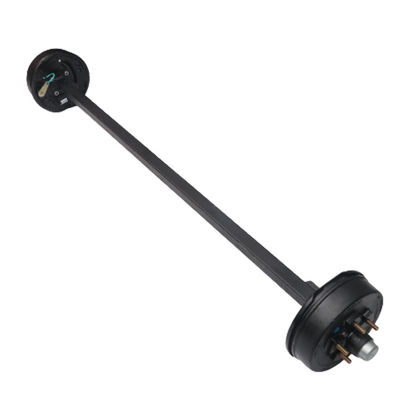

| High Light: | 45MM square boat trailer axle,2000Kg square boat trailer axle,10'' Electric Brake Trailer Axle |
||
Fast lube Design.
Zerk fitting on the spindle uses a rubber plug on the hub cap to grease bearings simply.
Grease your axle without pulling off your whole entire hub.
Underslung – Axle is welded with spring seats on the bottom (Axle sits on top of the springs) which Allows for lower ride height. For optimal usage, use with double eye springs
High Strength Cambered Steel Axle Tube Construction to ensure Even Tire Wear so the tires will last longer.
Powder coated black.
Hub Face (HF):
measure from one end of the axle where the lug bolts protrude out from to the other end at the same point. This is the Hub Face.
Spring Center (SC):
Measure from the middle of the spring on one axle to the center of the other spring on the same axle.
There should be about 15" difference between the Hub Face and the Spring Center measurement. (7-1/2" each side
| NO. | Description | QTY | option 1 | option 2 | option 3 |
| 1 | axle shaft | 1 | 50mm Rd / Sq solid | 60mm Rd / Sq solid | 76*6mm round tube |
| 2 | mounting plate | 2 | AT01200105 | AT01200110 | |
| 3 | 12" brake plate | 2 | AZ011UR | AZ025L/R | AZ003L/R |
| 4 | bolt, washer & nut | 8 | AC00100501/2/3 | ||
| 5 | oil seal | 2 | AC00200400 | AT01700302 | |
| 6 | inner bearing | 2 | 25580/20 | ||
| 7 | 12" hub drum | 2 | AC00200300 | AC00200300C | |
| 8 | wheel nut | 12,16 | 1/2"-10UNF | ||
| 9 | outer bearing | 2 | 15123/45 | 14125A/76 | |
| 10 | flat washer | 2 | AC00201001 | ||
| 11 | castle nut | 2 | AC00200701 | ||
| 12 | split pin | 2 | AC00200404 | ||
| 13 | dust cap | 2 | AC00200601 | AC00200601B |
Choose me,do not hesitate
(1)Design team:We have a professional design team.many designs,as you choose.your sample is always welcome.
(2)Professional factory:We are manufacturer,specializing in manufacturing trailer parts for 8 years.competitive price with good quality.
(3)Sample:We can give out sample freely, the shipment charge usually paid by your side,and the fee of it will be rebound when we have formal order.
(4) Rapid response to your needs:We will be answer within 24 hours.welcome to contact us if you have any problems,we are looking forward to cooperating with you
.
Great for Utility Trailer Axle, Boat Trailer Axle, Car Haulers Trailer Axle, ATV Trailer Axle, Lawn & Landscape Trailer Axle, Motorcycle Trailer Axle, BBQ Pit Trailer Axle, Cargo Trailer Axle, Enclosed Trailer Axle, RV Trailer Axle & More
