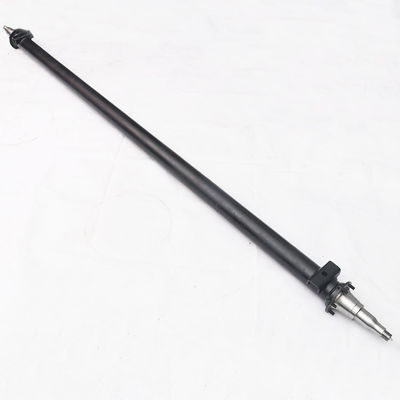

Round Fast Lube 5000 To 6000 Pound Trailer Axle 76MM

Round Fast Lube 5000 To 6000 Pound Trailer Axle 76MM
Round Fast Lube 5000 To 6000 Pound Trailer Axle 76MM Round Fast Lube 5000 To 6000 Pound Trailer Axle 76MM

Large Image :  Round Fast Lube 5000 To 6000 Pound Trailer Axle 76MM

Product Details:
Place of Origin: Shandong,China
Brand Name: Airui
Certification: ISO/TS16949
Model Number: AC005
Payment & Shipping Terms:
Minimum Order Quantity: Deliberations
Price: Deliberations
Packaging Details: 1. Hot shrink poly per set/box and ten boxes in one carton. 2. Pallet packing. 3. As your requirements
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 20000 Set/Sets per Month

Round Fast Lube 5000 To 6000 Pound Trailer Axle 76MM

Description
Use: Trailer Parts Max Payload: 2500-3500 Kg
Size: Unbrake Material: Steel
Quality: 100% Guaranteed Length: Customer Model
Tube: 76 Mm Round Bolts: Unbrake Axle
High Light:

6000 Pound Trailer Axle 76MM

,

Round 6000 pound trailer axle

,

Fast Lube 5000 pound trailer axle

2500-3000 Kg 76 MM Round Tube Straight Unbrake Trailer Axle



Fast lube Design.
Zerk fitting on the spindle uses a rubber plug on the hub cap to grease bearings simply.
Grease your axle without pulling off your whole entire hub.

Underslung – Axle is welded with spring seats on the bottom (Axle sits on top of the springs) which Allows for lower ride height. For optimal usage, use with double eye springs

High Strength Cambered Steel Axle Tube Construction to ensure Even Tire Wear so the tires will last longer.

Powder coated black.



Hub Face (HF):

measure from one end of the axle where the lug bolts protrude out from to the other end at the same point. This is the Hub Face.



Spring Center (SC):

Measure from the middle of the spring on one axle to the center of the other spring on the same axle.

There should be about 15" difference between the Hub Face and the Spring Center measurement. (7-1/2" each side

NO. Description QTY option 1 option 2 option 3
1 axle shaft 1 50mm Rd / Sq solid 60mm Rd / Sq solid 76*6mm round tube
2 mounting plate 2 AT01200105 AT01200110
3 12" brake plate 2 AZ011UR AZ025L/R AZ003L/R
4 bolt, washer & nut 8 AC00100501/2/3
5 oil seal 2 AC00200400 AT01700302
6 inner bearing 2 25580/20
7 12" hub drum 2 AC00200300 AC00200300C
8 wheel nut 12,16 1/2"-10UNF
9 outer bearing 2 15123/45 14125A/76
10 flat washer 2 AC00201001
11 castle nut 2 AC00200701
12 split pin 2 AC00200404
13 dust cap 2 AC00200601 AC00200601B




Round Fast Lube 5000 To 6000 Pound Trailer Axle 76MM 0Round Fast Lube 5000 To 6000 Pound Trailer Axle 76MM 1



Choose me,do not hesitate
(1)Design team:We have a professional design team.many designs,as you choose.your sample is always welcome.
(2)Professional factory:We are manufacturer,specializing in manufacturing trailer parts for 8 years.competitive price with good quality.
(3)Sample:We can give out sample freely, the shipment charge usually paid by your side,and the fee of it will be rebound when we have formal order.
(4) Rapid response to your needs:We will be answer within 24 hours.welcome to contact us if you have any problems,we are looking forward to cooperating with you

.

Great for Utility Trailer Axle, Boat Trailer Axle, Car Haulers Trailer Axle, ATV Trailer Axle, Lawn & Landscape Trailer Axle, Motorcycle Trailer Axle, BBQ Pit Trailer Axle, Cargo Trailer Axle, Enclosed Trailer Axle, RV Trailer Axle & More
