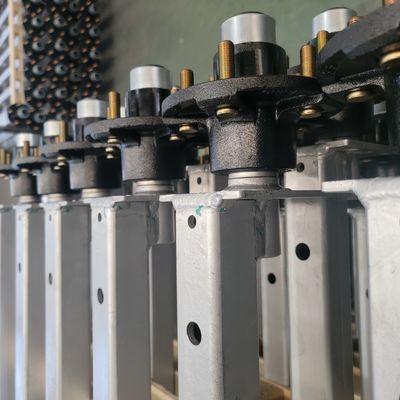

2500-3500Kg 60MM Square Tube Boat Trailer Axles With Idler Hub

2500-3500Kg 60MM Square Tube Boat Trailer Axles With Idler Hub
2500-3500Kg 60MM Square Tube Boat Trailer Axles With Idler Hub
2500-3500Kg 60MM Square Tube Boat Trailer Axles With Idler Hub 2500-3500Kg 60MM Square Tube Boat Trailer Axles With Idler Hub 2500-3500Kg 60MM Square Tube Boat Trailer Axles With Idler Hub

Large Image :  2500-3500Kg 60MM Square Tube Boat Trailer Axles With Idler Hub

Product Details:
Place of Origin: Shandong,China
Brand Name: Airui
Certification: ISO/TS16949
Model Number: AC089
Payment & Shipping Terms:
Minimum Order Quantity: Deliberations
Price: Deliberations
Packaging Details: 1. Hot shrink poly per set/box and ten boxes in one carton. 2. Pallet packing. 3. As your requirements
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 20000 Set/Sets per Month

2500-3500Kg 60MM Square Tube Boat Trailer Axles With Idler Hub

Description
Use: Trailer Parts Max Payload: 3500 Kg
Size: 5.5 Material: Iron
Quality: 100% Guaranteed Length: Customer Model
Tube: 50 Mm Square Bolts: 6
High Light:

60MM square tube boat trailer axles

,

3500Kg Straight Tube Trailer Axle

,

2000Kg square tube drop axle

60 MM Square Solid Tube Straight With Idler Hub Trailer Axle 2500-3500 Kg



BOLT PATTERN
Use the distance between the center of one bolt hole to the center of the bolt hole adjacent to it:
If the distance is:

2-5/8" - the bolt pattern is 5 on 4-1/2
2-3/4" - the bolt pattern is 5 on 4-3/4
3" - the bolt pattern is 5 on 5
3-1/4" - the bolt pattern is 5 on 5-1/2



Hub Face (HF):

measure from one end of the axle where the lug bolts protrude out from to the other end at the same point. This is the Hub Face.



6*5.5", 8*6.5" wheel pattern
NO. Description QTY option 1 option 2 option 3
1 axle shaft 1 50mm Rd / Sq solid 60mm Rd / Sq solid 76*6mm round tube
2 Oil seal 2 AC00200400 AT01700302
3 inner bearing 2 25580/20
4 ilder hub 2 AT01700112 AT01700112A
5 wheel nut 12,16 1/2"-10UNF
6 outer bearing 2 15123/45 14125A/76
7 flat washer 2 AC00201001
8 castle nut 2 AC00200701
9 split pin 2 AC00200404
10 dust cap 2 AC00200601 AC00200601B



2500-3500Kg 60MM Square Tube Boat Trailer Axles With Idler Hub 02500-3500Kg 60MM Square Tube Boat Trailer Axles With Idler Hub 1



FAQ:


1: Could you please make us an offer as soon as possible?

In order to get the price quickly and accurately, please provide the technical drawing or OE number, we will be very grateful.



2: How can you guarantee the quality of your products?

Our products have passed ISO9001 international quality standard certification. Our company has a very strict quality control system.



3: How to solve the problems in the later stage?

We are confident in our products. We pack them well to make sure they are well protected.



Packaging & Shipping

As for the transportation of products, our company supports various sea, land and air international transportation. Please confirm the specific transportation plan during the negotiation.



In trailers, the parking brake, also called hand brake, emergency brake, or e-brake, is a latching brake usually used to keep the vehicle stationary. It is sometimes also used to prevent a vehicle from rolling when the operator needs both feet to operate the clutch and throttle pedals. Automobile hand brakes usually consist of a cable directly connected to the brake mechanism on one end and to a lever or pedal at the driver's position. The mechanism is often a hand-operated lever (hence the hand brake name), on the floor on either side of the driver, or a pull handle located below and near the steering wheel column, or a (foot-operated) pedal located far apart from the other pedals.
