76mm Unbrake 6000 Lb Trailer Axle 5 Lug Car Hauler Trailer Axles

Certification
China Weifang Airui Brake Systems Co., Ltd. certification
China Weifang Airui Brake Systems Co., Ltd. certification
I'm Online Chat Now

76mm Unbrake 6000 Lb Trailer Axle 5 Lug Car Hauler Trailer Axles

76mm Unbrake 6000 Lb Trailer Axle 5 Lug Car Hauler Trailer Axles
76mm Unbrake 6000 Lb Trailer Axle 5 Lug Car Hauler Trailer Axles 76mm Unbrake 6000 Lb Trailer Axle 5 Lug Car Hauler Trailer Axles 76mm Unbrake 6000 Lb Trailer Axle 5 Lug Car Hauler Trailer Axles

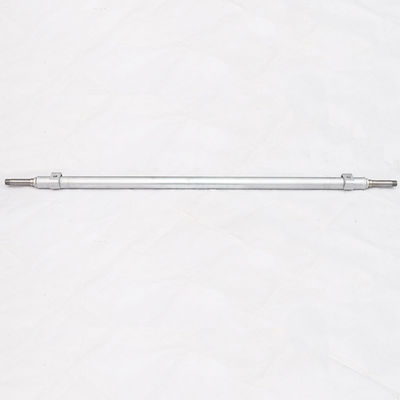

Large Image :  76mm Unbrake 6000 Lb Trailer Axle 5 Lug Car Hauler Trailer Axles

Product Details:
Place of Origin: Shandong,China
Brand Name: Airui
Certification: ISO/TS16949
Model Number: AC066
Payment & Shipping Terms:
Minimum Order Quantity: Deliberations
Price: Deliberations
Packaging Details: 1. Hot shrink poly per set/box and ten boxes in one carton. 2. Pallet packing. 3. As your requirements
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 20000 Set/Sets per Month

76mm Unbrake 6000 Lb Trailer Axle 5 Lug Car Hauler Trailer Axles

Description
Use: Trailer Parts Max Payload: 6000 Lbs
Size: Unbrake Material: Steel
Quality: 100% Guaranteed Length: Customer Model
Tube: 76 Mm Round Bolts: Unbrake Axle
High Light:

76mm 6000 Lb Trailer Axle

,

unbrake 6000 Lb Trailer Axle

,

5 Lug Car Hauler Trailer Axles

6000 Lbs 76 Mm Round Tube Straight Unbrake Free Length Trailer Axle

LOAD CAPACITY: the load rating of an axle must support the maximum gross vehicle (GVW) rating. If your trailer weighs 1,000 lbs and your equipment weighs 2,200 lbs, you will need at least a 3,500 lbs capacity axle.

SPINDLE OPTIONS: the spindle options available are straight or drop. A drop spindle will give you the lower deck but limits the width available for your deck. Most common spindle choice is the straight.

5* 4.5", 6*5.5" wheel bolts pattern
NO. Description QTY option 1 option 2
1 axle shaft 1 45mm Rd / Sq solid 50*5mm Rd / Sq tube
2 Oil seal 2 AC00900500 AT01700301
3 inner bearing 2 LM67048/10 L44649/10
4 ilder hub 2 AT01700107 AT01700102
5 wheel bolt 10,12 1/2K-10UNF 7/16"-20UNF
6 outer bearing 2 LM 11949/10 L44649/10
7 flat washer 2 AC00500402 AC00201001
8 castle nut 2 AC00500403 AC00200701
9 split pin 2 AC00500404 AC00200404
10 dust cap 2 AC00500405 AC00300601




76mm Unbrake 6000 Lb Trailer Axle 5 Lug Car Hauler Trailer Axles 076mm Unbrake 6000 Lb Trailer Axle 5 Lug Car Hauler Trailer Axles 1



Features:

Axle Beam Acts as part of your trailer Suspension for hauling loads.



Great for replacing an old axle or bent damaged axle on your trailer



Made of High Strength Steel



Underslung axle design: spring pads are welded to the underside of the axle for mounting leaf springs.



Spring pads are pre-welded on the trailer axle for your convenience.



The 5 lug Hub Drums & Electric Brakes are assembled on the axle and 5 lug idler hubs on other axle with the bearings, seals, pre-greased, fully assembled for simple installation on your trailer.



Great for Utility Trailer Axle, Boat Trailer Axle, Car Haulers Trailer Axle, ATV Trailer Axle, Lawn & Landscape Trailer Axle, Motorcycle Trailer Axle, BBQ Pit Trailer Axle, Cargo Trailer Axle, Enclosed Trailer Axle, RV Trailer Axle & More
