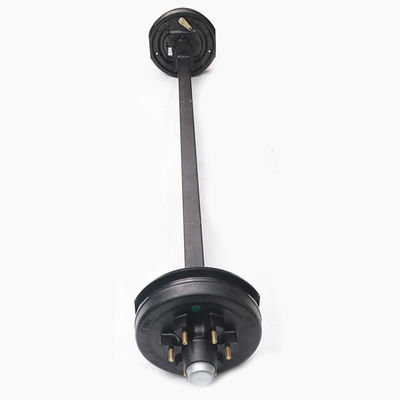

2000Kg 12 Inch Drum Electric Trailer Drop Axles 50x50mm

2000Kg 12 Inch Drum Electric Trailer Drop Axles 50x50mm
2000Kg 12 Inch Drum Electric Trailer Drop Axles 50x50mm 2000Kg 12 Inch Drum Electric Trailer Drop Axles 50x50mm

Large Image :  2000Kg 12 Inch Drum Electric Trailer Drop Axles 50x50mm

Product Details:
Place of Origin: Shandong，China
Brand Name: Airui
Certification: ISO/TS16949
Model Number: AC011
Payment & Shipping Terms:
Minimum Order Quantity: Deliberations
Price: Deliberations
Packaging Details: 1. Iron frame packing. 2. As your requirements
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 Piece/Pieces per Month
Contact Now

2000Kg 12 Inch Drum Electric Trailer Drop Axles 50x50mm

Description
Use: Trailer Axle Size: Square 50x50 ,free Length, Optional
Material: 45# Application: Horse Floats
Max Payload: 1t Surface Treatment: Painted Etc
Brake: 12 Inch Electic Brake With Parking Lever Length: Customer Model
Highlight:

12 Inch Drum Trailer Drop Axles

,

Electric Trailer Drop Axles 50x50mm

,

2000Kg boat trailer drop axle

2000 Kg Square 12 Inch Drum Electric Braked Drop Axle For Horse Floats

Axle with brake, long axle section available in hollow round tube, hollow square tube, or solid round steel, solid square steel.

With our clear axle product differentiation, we offer the optimal solution for each purpose: This also enables you to clearly differentiate your products with optimal value creation.
NO. Description QTY option 1 option 2 option 3
1 axle shaft 1 50mm Rd / Sq solid 60mm Rd / Sq solid
2 drop plate 2 AC01500103
3 mounting plate 2 AT01200105 AT01200110
4 nut 10 AC00100501   AT01200103
5 washer 10 AC00100502/3
6 stub axle 2 AC00200201
7 12" brake plate 2 AZ011L/R AZ025L/R
8 oil seal 2 AC00200400 AT01700302
9 inner bearing 2 25580/20
10 12" hub drum 2 AC00200300C AC00200300
11 wheel nut 10 1/2"-10UNF
12 outer bearing 2 15123/45 14125A/76
13 flat washer 2 AC00201001
14 castle nut 2 AC00200701
15 split pin 2 AC00200404
16 dust cap 2 AC00300601B AC00200601



2000Kg 12 Inch Drum Electric Trailer Drop Axles 50x50mm 02000Kg 12 Inch Drum Electric Trailer Drop Axles 50x50mm 1



Our Advance
1, Modular system, i.e. you can choose between:
A) Axle complete (supplied unmounted)
B) Individual axle components
2, The leaf springs and shock absorbers are clamped onto the axle
profile
3, The axle tube is a sturdy, commercially available square tube
4, Thanks to the screw-in system, the axle tube and
fastening plates can be hot-dip galvanised
5, Wheel brake as standard with compact bearing
6, Wheel brake optionally in watertight version
