Product Details:
|
| Use: | Trailer Parts Use | Max Payload: | 900 Kg |
|---|---|---|---|
| Size: | 3/8" Bolts | Bolt: | 4 |
| Oil Seal: | O.D. 50.5 Drive In | Dust Cover: | I.D.45.4 Mm /50.5mm Single Clip |
| Wheel Nut: | 3/8"" Cone Wheel Nut | Bearing: | L44643 Inner Bearing And L44643L Outer Bearing |

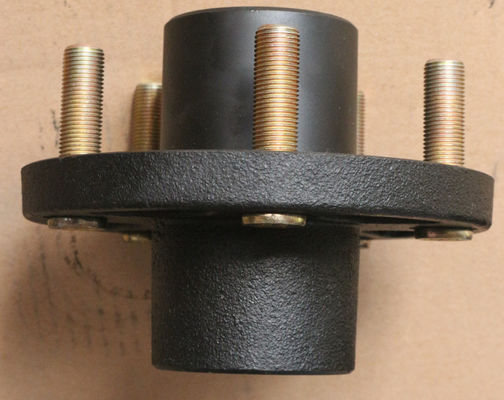

| High Light: | L44643L Bearing Trailer Idler Hubs,L44643 Bearing Trailer Idler Hubs,900Kg 5 On 4.5 Hub Assembly |
||
| HUB | Bearing | Oil seal | Dust cap | Wheel nut |
| AT01700104/105 | LM67048 & LM11949 | AC00900500 | AC00500405 | AT01600600 |
| Hub body c/w 5 * 4.25" bolts & LM67010/LM11910 bearing race | inner / outer bearing | LD. 36.5mm single lip | O.D. 45.4mm drive in | 7/16" cone wheel nut |
| AT01700108 | L68149 & LM12749 | AC00500201 | AC00500405 | AT01600600 |
| Hit) body c/w 5 * 425" bolls & L68110/LM12710bearing race | inner / outer bearing | LD. 43.5mm single lip | O.D. 45.4mm drive in | 7716' cone wheel nut |
| AT01700107 | LM67048 & LM11949 | AC00900500 | AC00500405 | AC00500302A |
| Hub body c/w 5 * 4.5" bolls & LM67010 /LM11910 bearing race | inner / outer bearing | LD. 36.5mm single lip | O.D. 45.4mm drive in | 1/2" cone wheel nut |
| AT01700110 | L68149 & LM12749 | AC00500201 | AC00500405 | AC00500302A |
| Hub body c/w 5 * 4.5" bolts & L68110/ LM12710 bearing race | inner / outer bearing | LD. 43.5mm single lip | O.D. 45.4mm drive in | 1/2" cone wheel nut |
| AT01700116 | L68149 & L44649 | AC00300201 | AC00300601 | AC00500302A |
| Hub body c/w 5 * 4.5" bolts & L68111 /L44610 bearing race | inner / outer bearing | LD. 43.7mm single lip | O.D. 50.5mm drive in | 1/2" cone wheel nut |
| HUB | Bearing | Oil seal | Dust cap | Wheel nut |
| AT01700106 | LM67048& LM11949 | AC00900500 | AC00500405 | AT01600600 |
| Hub body c/w 5 * 4.75" bolte & LM67010/LM11910 bearing race | inner / outer bearing | LD. 36.5mm single liP | O.D. 45.4mm drive in | 7/16" cone wheel nut |
| AT01700109 | L68149 & LM12749 | AC00500201 | AC00500405 | AT01600600 |
| Hub body c/w 5 * 4.75" bolte & L68110/ LM12710 bearing race | inner / outer bearing | I.D. 43.5mm single liP | O.D. 45.4mm drive in | 7/16" cx)ne wheel nut |
| AT01700120 | L68149& L44649 | AC00300201 | AC00300601 | AC00500302A |
| Hub body c/w5*4.75"bolte& L68111 /L44610 bearing race | inner / outer bearing | I.D. 43.7mm single liP | O.D. 50.5mm drive in | 1/2" cone wheel nut |
| AT01700120 | L68149& L44649 | AC00300201 | AC00300601 | AC00500302A |
| Hub body c/w5* 5" bolts & L68111 /L44610 bearing race | inner / outer bearing | I.D. 43.7mm single liP | O.D. 50.5mm drive in | 1/2" cone wheel nut |
| AT01700128 | L68149& L44649 | AC00300201 | AC00300601 | AC00500302A |
| Hub body c/w 5 * 5.5" bolts & L68111 /L44610 bearing race | inner / outer bearing | I.D. 43.7mm single liP | O.D. 50.5mm drive in | 1/2" cone wheel nut |
Why US?
1. Sino-US joint venture manufacture, whose partner is AXLE TEKNOLOGY LLC, one of the most famous
trailer axle company in America.
2. 1 000 000 pieces of brake assembly was sold in the year of 2012.
3. CSA, ISO9001/TS16949 certifications
4. 7" 9" 10" 11" 12" 12 1/4" electric/hydraulic/mechanical brake assembly for almost all kind of trailer usage.
5. complete sets of production equipment, advanced detectionequipment and strong technical force
