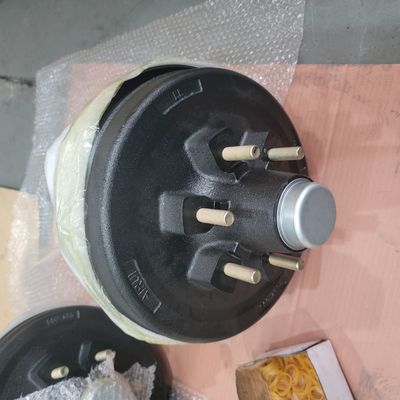

60*480mm Trailer Axle Spindles 9K 10K 15K 5 Lug Trailer Hub And Spindle

60*480mm Trailer Axle Spindles 9K 10K 15K 5 Lug Trailer Hub And Spindle
60*480mm Trailer Axle Spindles 9K 10K 15K 5 Lug Trailer Hub And Spindle 60*480mm Trailer Axle Spindles 9K 10K 15K 5 Lug Trailer Hub And Spindle

Large Image :  60*480mm Trailer Axle Spindles 9K 10K 15K 5 Lug Trailer Hub And Spindle

Product Details:
Place of Origin: Shandong，China
Brand Name: Airui
Certification: ISO/TS16949
Model Number: AB00203200
Payment & Shipping Terms:
Minimum Order Quantity: Deliberations
Price: Deliberations
Packaging Details: 1. Hot shrink poly per set/box and ten boxes in one carton. 2. Pallet packing. 3. As your requirements
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 20000 Set/Sets per Month
Contact Now

60*480mm Trailer Axle Spindles 9K 10K 15K 5 Lug Trailer Hub And Spindle

Description
Use: Axle Parts OE NO: AB00203200
Max Payload: 2300-3500 Lbs Product Name: Axle Spindle With Idler Hub
MOQ: 100pcs Size: 60*480 Mm
Material: Steel Quality: 100% Guaranteed
Highlight:

60*480mm Trailer Axle Spindles

,

5x5 trailer hub and spindle

,

15K 5 Lug Trailer Hub And Spindle

Trailer Axle Spindles With Parking Level Electric Brake 60*480mm

Bearing Adjustment
9K 10K General Duty , 10K-15K Heavy Duty Axles :
Correct adjustment for all bearings is 001 to 010 end play .
1 . Rotate hub assembly slowly while tightening the inner lock nut to 100 lb-ft to seat the bearings
2 . Loosen the inner lock nut to remove pre-load torque . Do not rotate the hub
3 . Finger tighten the inner lock nut and snug
4 . Back inner lock nut out V4 to 3 / turn
5 . Install tang washer and outer lock nut . Bend two tangs over inner lock nut Torque outer lock nut to
100-150 Ft LbS , insuring that the inner lock nut does not turn Bend 2 tangs over flats on outer lock nut to secure



Item Value
Use Trailer parts
OE NO. AB00203200
Max Payload 2300-3500 lbs
Product Name Stub axle
Size 60 mm



60*480mm Trailer Axle Spindles 9K 10K 15K 5 Lug Trailer Hub And Spindle 060*480mm Trailer Axle Spindles 9K 10K 15K 5 Lug Trailer Hub And Spindle 1

FAQ
Q1,What is your package types?
A:Generally, in neutral white boxes and brown cartons or as ur requirements.

Q2,What is your terms of payment?
A: 30% T/T in advance and 70% before shipping or against by BL copy.

Q3,What is your payment terms?
A: EXW,FOB, CNF & CIF.

Q4,How about your delivery time?
A: Usually,within 30-60 days after receiving the deposit or depending on the order’s requirements.

Q5,Can you produce according to the samples?
A:Yes,we can produce by your samples or technical drawing.

Q6,What is your sample price?
A:Sample design is free, sample and the express cost without free.

Q7,Do you test all your product before delivery?
A:Yes,we have 100% test before delivery.

Q8: How to establish the long-term stable business relationship with your company?
A:We can supply good and competitive price cargo to make sure the win-win relationship.
