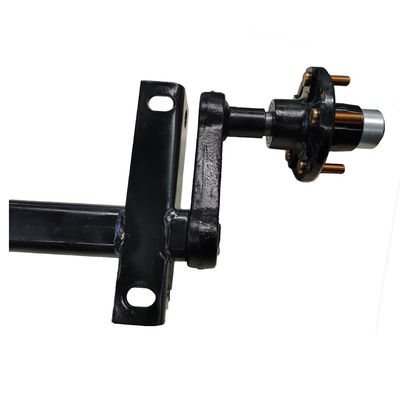

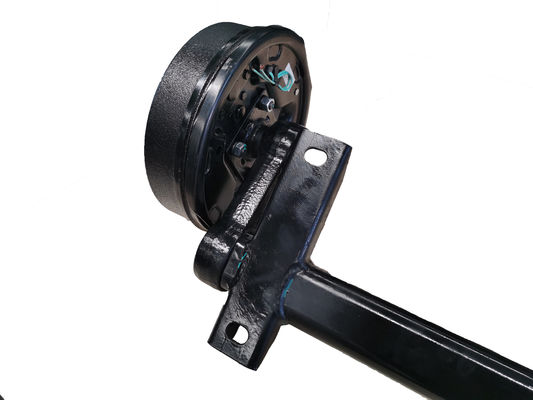

Product Details:
|
Use: | Trailer Parts | Max Payload: | 2200 Lbs |
---|---|---|---|
Type: | Trailer Axles | Size: | Customized |
Material: | Steel | ||
Highlight: | Trailer Torsion Axles 1500kg,1500kg Wheel Hub Trailer Axle,Mechanical Drum Brake Trailer Torsion Axles |
Detailed Specification
item
|
500-3000KG torsion axle
|
Use
|
Light Trailer
|
Parts
|
Trailer Axles
|
OE NO.
|
8 INCH
|
Max Payload
|
3000KGS
|
Size
|
80mm square tube
|
Place of Origin
|
China
|
|
Shandong
|
Brand Name
|
Airui
|
Type
|
8" drum brake
|
Size
|
8 Inch
|
7" 9" 10" 11" 12" 12 1/4" electric/hydraulic/mechanical brake assembly
for almost all kinds of light and medium-duty trailer usage.
TRACK WIDTH: To determine your trailer’s track width, measure from the center of one tire to the center of the opposite tire on the other end of the same axle. A more precise measurement can be obtained by measuring the distance from the hub’s face to the other end’s hub face. This hub face (or track width) measurement will tell you the axle’s length.
NO. |
Description |
QTY |
option 1 |
option 2 |
option 3 |
1 |
axle shaft |
1 |
50mm Rd / Sq solid |
60mm Rd / Sq solid |
76*6mm round tube |
2 |
mounting plate |
2 |
AT01200105 |
AT01200110 |
|
3 |
12" brake plate |
2 |
AZ011UR |
AZ025L/R |
AZ003L/R |
4 |
bolt, washer & nut |
8 |
AC00100501/2/3 |
|
|
5 |
oil seal |
2 |
AC00200400 |
AT01700302 |
|
6 |
inner bearing |
2 |
25580/20 |
|
|
7 |
12" hub drum |
2 |
AC00200300 |
AC00200300C |
|
8 |
wheel nut |
12,16 |
1/2"-10UNF |
|
|
9 |
outer bearing |
2 |
15123/45 |
14125A/76 |
|
10 |
flat washer |
2 |
AC00201001 |
|
|
11 |
castle nut |
2 |
AC00200701 |
|
|
12 |
split pin |
2 |
AC00200404 |
|
|
13 |
dust cap |
2 |
AC00200601 |
AC00200601B |
|
Our Advantage
1>Our joint venture partners are American Famous axle company AXLETEK,we have make a cooperation for 6 years.So we can supply stable and high quality brakes.
2>We have Researching and Development Department in Detroit,so we are also capable of developing products according drawing or samples to meet the special requirement of our customes.
3>We can supply 7 inch,10 inch,12 inch and 12.25 inch brakes for the moment.
4>All the parts for the brakes are produced by ourself,so we can supply our customer high quality products with resonable price.
5>We can also supply axle assemly.
